Over the last few days, I once again tried to tackle pointer acceleration. After all, I still get plenty of complaints about how terrible libinput is and how the world was so much better without it. So I once more tried to understand the X server's pointer acceleration code. Note: the evdev driver doesn't do any acceleration, it's all handled in the server. Synaptics will come in part two, so this here focuses mostly on pointer acceleration for mice/trackpoints.
After a few failed attempts of live analysis , I finally succeeded extracting the pointer acceleration code into something that could be visualised. That helped me a great deal in going back and understanding the various bits and how they fit together.
The approach was: copy the ptrveloc.(c|h) files into a new project, set up a meson.build file, #define all the bits that are assumed to be there and voila, here's your library. Now we can build basic analysis tools provided we initialise all the structs the pointer accel code needs correctly. I think I succeeded. The git repo is here if anyone wants to check the data. All scripts to generate the data files are in the repository.
A note on language: the terms "speed" and "velocity" are subtly different but for this post the difference doesn't matter. The code uses "velocity" but "speed" is more natural to talk about, so just assume equivalence.
The X server acceleration code
There are 15 configuration options for pointer acceleration (ConstantDeceleration, AdaptiveDeceleration, AccelerationProfile, ExpectedRate, VelocityTrackerCount, Softening, VelocityScale, VelocityReset, VelocityInitialRange, VelocityRelDiff, VelocityAbsDiff, AccelerationProfileAveraging, AccelerationNumerator, AccelerationDenominator, AccelerationThreshold). Basically, every number is exposed as configurable knob. The acceleration code is a product of a time when we were handing out configuration options like participation medals at a children's footy tournament. Assume that for the rest of this blog post, every behavioural description ends with "unless specific configuration combinations apply". In reality, I think only four options are commonly used: AccelerationNumerator, AccelerationDenominator, AccelerationThreshold, and ConstantDeceleration. These four have immediate effects on the pointer movement and thus it's easy to do trial-and-error configuration.
The server has different acceleration profiles (called the 'pointer transfer function' in the literature). Each profile is a function that converts speed into a factor. That factor is then combined with other things like constant deceleration, but eventually our output delta forms as:
deltaout(x, y) = deltain(x, y) * factor * decelerationThe output delta is passed back to the server and the pointer saunters over by few pixels, happily bumping into any screen edge on the way.
The input for the acceleration profile is a speed in mickeys, a threshold (in mickeys) and a max accel factor (unitless). Mickeys are a bit tricky. This means the acceleration is device-specific, the deltas for a mouse at 1000 dpi are 20% larger than the deltas for a mouse at 800 dpi (assuming same physical distance and speed). The "Resolution" option in evdev can work around this, but by default this means that the acceleration factor is (on average) higher for high-resolution mice for the same physical movement. It also means that that xorg.conf snippet you found on stackoverflow probably does not do the same on your device.
The second problem with mickeys is that they require a frequency to map to a physical speed. If a device sends events every N ms, delta/N gives us a speed in units/ms. But we need mickeys for the profiles. Devices generally have a fixed reporting rate and the speed of each mickey is the same as (units/ms * reporting rate). This rate defaults to 10 in the server (the VelocityScaling default value) and thus matches a device reporting at 100Hz (a discussion of this comes later). All graphs below were generated with this default value.
Back to the profile function and how it works: The threshold (usually) defines the mimimum speed at which acceleration kicks in. The max accel factor (usually) limits the acceleration. So the simplest algorithm is
if (velocity < threshold) return base_velocity; factor = calculate_factor(velocity); if (factor > max_accel) return max_accel; return factor;In reality, things are somewhere between this simple and "whoops, what have we done".
Diagrams were generated by gnuplot, parsing .dat files generated by the ptrveloc tool in the git repo. Helper scripts to regenerate all data are in the repo too. Default values unless otherwise specified:
- threshold: 4
- accel: 2
- dpi: 1000 (used for converting units to mm)
- constant deceleration: 1
- profile: classic
The server provides a number of profiles, but I have seen very little evidence that people use anything but the default "Classic" profile. Synaptics installs a device-specific profile. Below is a comparison of the profiles just so you get a rough idea what each profile does. For this post, I'll focus on the default Classic only.
The classic profile transparently maps to the simple profile, so the curves are identical.

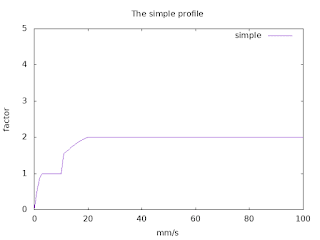

Anyway, as said above, profile changes are rare. The one we care about is the default profile: the classic profile which transparently maps to the simple profile (SimpleSmoothProfile() in the source).
The profile has deceleration (accel factor < 1 and thus decreasing the deltas) at slow speeds. This provides extra precision at slow speeds without compromising pointer speed at higher physical speeds.
The effect of config options

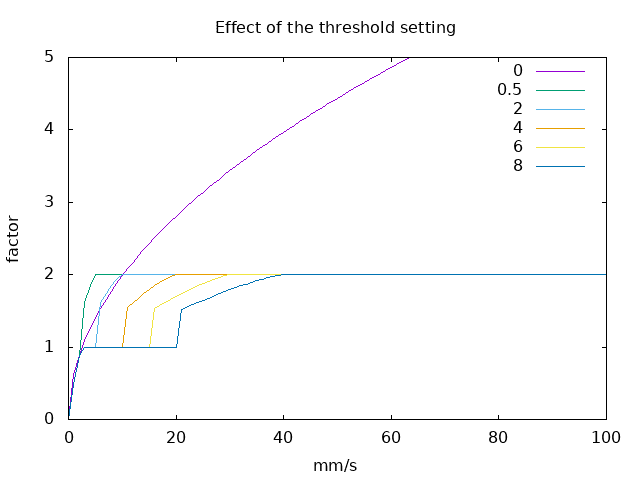

Ok, now let's look at the classic profile and the configuration options. What happens when we change the threshold?
Otherwise, the threshold not only defines when acceleration starts kicking in but it also affects steepness of the curve. So higher threshold also means acceleration kicks in slower as the speed increases. It has no effect on the low-speed deceleration.
What happens when we change the max accel factor? This factor is actually set via the AccelerationNumerator and AccelerationDenominator options (because floats used to be more expensive than buying a house). At runtime, the Xlib function of your choice is XChangePointerControl(). That's what all the traditional config tools use (xset, your desktop environment pre-libinput, etc.).
Otherwise it's relatively unexciting, it changes the maximum acceleration without changing the incline of the function. And it has no effect on deceleration. Because the curves aren't linear ones, they don't overlap 100% but meh, whatever. The higher values are cut off in this view, but they just look like a larger version of the visible 2 and 4 curves.
Next config option: ConstantDeceleration. This one is handled outside of the profile but at the code is easy-enough to follow, it's a basic multiplier applied together with the factor. (I cheated and just did this in gnuplot directly)
All this means with the default profile, we have 3 ways of adjusting it. What we can't directly change is the incline, i.e. the actual process of acceleration remains the same.
As mentioned above, the profile applies to a velocity so obviously we need to calculate that first. This is done by storing each delta and looking at their direction and individual velocity. As long as the direction remains roughly the same and the velocity between deltas doesn't change too much, the velocity is averaged across multiple deltas - up to 16 in the default config. Of course you can change whether this averaging applies, the max time deltas or velocity deltas, etc. I'm honestly not sure anyone ever used any of these options intentionally or with any real success.
Velocity scaling was explained above (units/ms * reporting rate). The default value for the reporting rate is 10, equivalent to 100Hz. Of the 155 frequencies currently defined in 70-mouse.hwdb, only one is 100 Hz. The most common one here is 125Hz, followed by 1000Hz followed by 166Hz and 142Hz. Now, the vast majority of devices don't have an entry in the hwdb file, so this data does not represent a significant sample set. But for modern mice, the default velocity scale of 10 is probably off between 25% and a factor 10. While this doesn't mean much for the local example (users generally just move the numbers around until they're happy enough) it means that the actual values are largely meaningless for anyone but those with the same hardware.
Of note: the synaptics driver automatically sets VelocityScale to 80Hz. This is correct for the vast majority of touchpads.
The graphs above show the X server's pointer acceleration for mice, trackballs and other devices and the effects of the configuration toggles. I purposely did not put any specific analysis in and/or comparison to libinput. That will come in a future post. I still have a branch somewhere where the server prints yaml to the log file which can then be extracted by shell scripts, passed on to python for processing and ++++ out of cheese error. redo from start ++++
